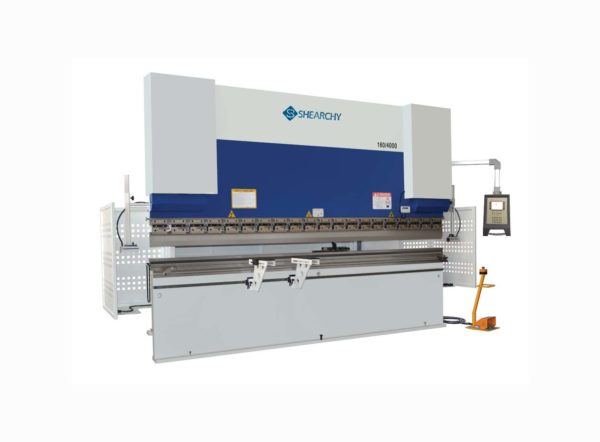

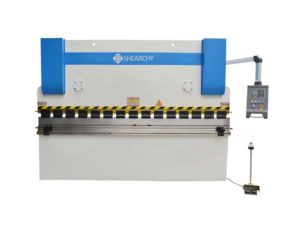

EUROBEND PRESS BRAKE

  • Shearchy EuroBend press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.
  • Also has increased working speeds, stroke, daylight, and pressing capacities of GENIUS Series machines.
  • The future – as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.

Category: Tag:

Description

Quick Details

Condition: New                                  Brand Name:  Shearchy                                  Machine Type:  Press Brake
Raw Material:Steel plate                  Power: Hydraulic                                               Certification: ISO, SGS, CE
After-sales Service Provided:Engineers available to service machinery overseas

EuroBend CNC press brake Product Description

Whole steel welding structure,holistic processed with CNC equipments,vibrting to eliminate stress,with high strenth and good rigidity.Hydraulic upper drove type,with high stability

Elctro-hydro ratio servo synchronization,control arbitrary point within stoke,repeating accuracy at +/0.1,Parallelism at+/0.02.
Use delem cnc system from Holland,together with light scae and hydraulic valve assembiy&imported servo motor,with low maintenance.
High Anti-deviation ability,with ram stoke(Y1,Y2)and back gauge(X,R,Z)controlled by computer.

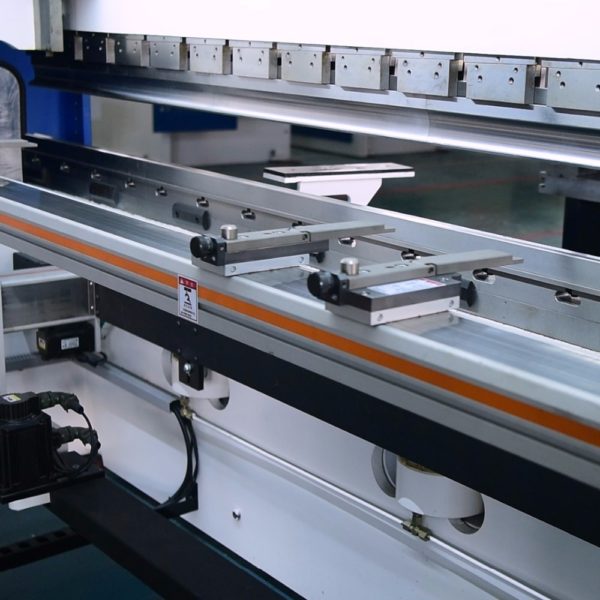

 Back gauge applies ball screw,linear guide way,with high accuracy.

Adopting reliable electro-hydraulic electro-hydraulic proportional synchronization servo and its parallelism precision could reach 0.01mm. it can support eccectric load.
The machine enjoys high accuracy and high strength and good rigidity.

EuroBend CNC press brake CONFIGURATION:

  1. Main electronic elements: Schneider;
  2. ABB; electronic box will power off when open the door;
  3. Seals: NOK, made in Japan;

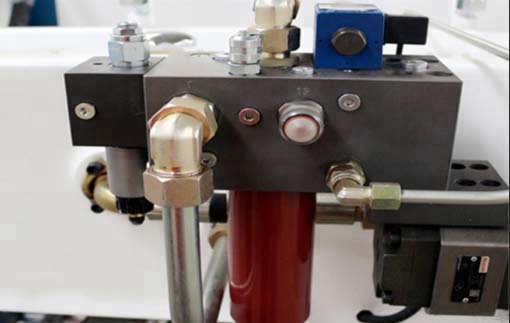

  4. Hydraulic Rexroth valves;
  5. Ferrule connection ;
  6. Gear pump : made in China;

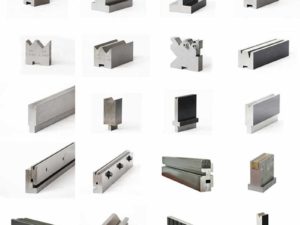

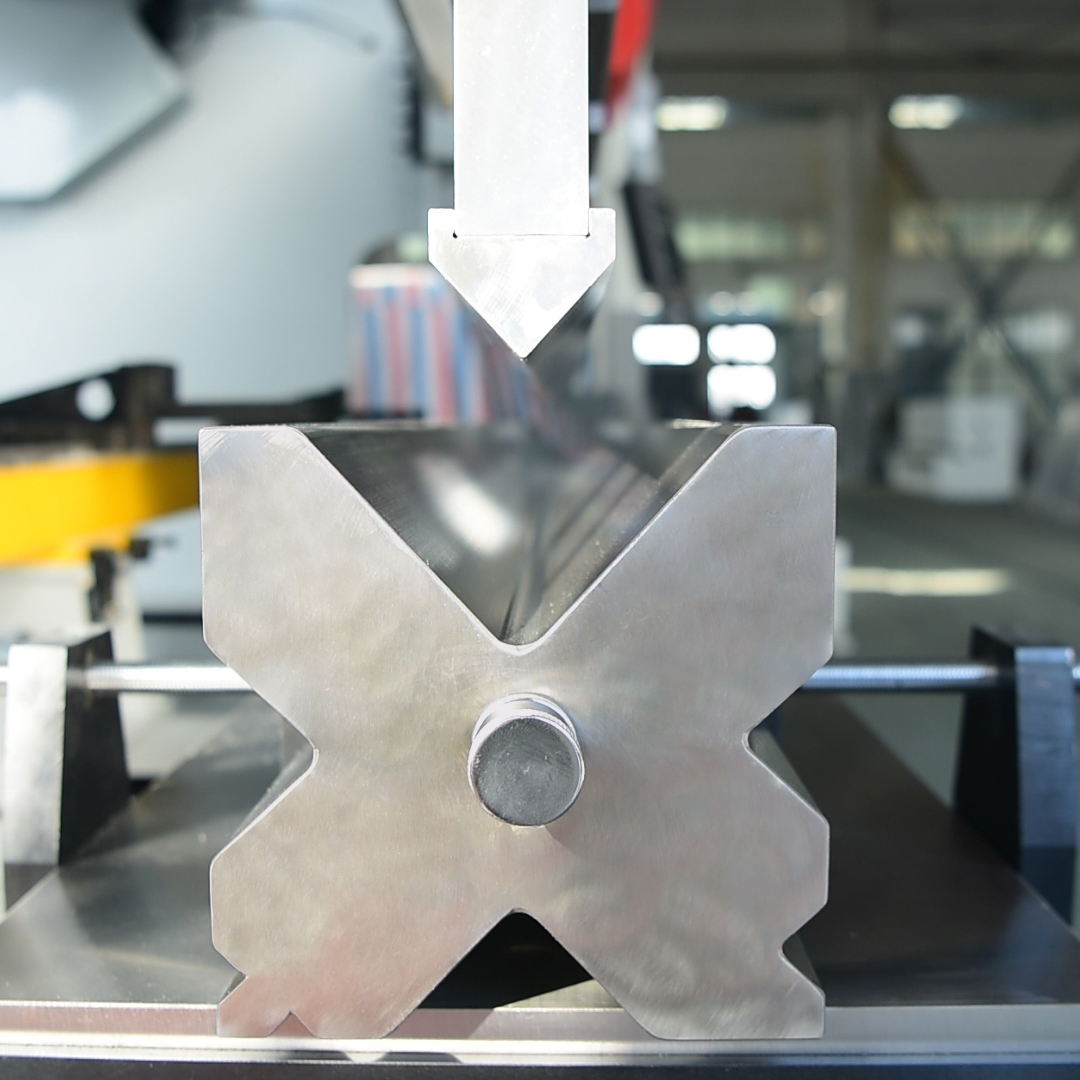

  7.  The standard tooling;
  8. Back gauge: ball screw, belt drives

EuroBend CNC press brake Controller:

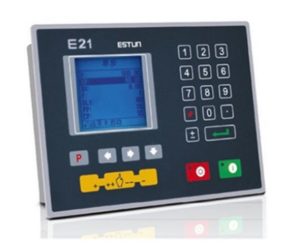

Standard controller: E21



Back gauge and block control
Control for general AC motors,frequency inverted
Intelligent positioning
Holding/decompression time setting
Program memory of up to 40 programs Up to 25 steps per program
One side positioning
Retract function One key backup/restore of parameters









Optional controller: ESA S530

ESA S530.png



Real-time automatic checking of the filling form programming mode, automatic calculation of bending and compensating force.
2D graphics edit upper and lower die.
2D graphic preview artifact (if the artifact is edited via graphics)
2D graphics programming (optional)
Automatic calculation of bending process (optional).
Manual bending items (single step bending, no program interrupt).
All programs, molds, parameters can be stored in the native memory or USB drive, which can be uploaded to other CNC or PC on the USB drive.















Optional controller: DA 52S

DA 52S.png

DA52S controller is designed for electro-hydraulic synchronous bending machine.
 6 inch screen.
For 3+1 axis use and can up to 4+1 axis.
Parameter Programmable.





















EuroBend CNC press brake Technical Data

Model Nomial Pressure(kN) Length of Table (mm) Distance between Housings(mm) Throat Depth (mm) Stroke (mm) Open Height (mm) Main Motor (Kw) Overall Dimensions LxWxH (mm)
WEK-63/2500 630 2500 2000 320 160 400 5.5 3040x1640x2225
WEK-63/3200 630 3200 2660 320 160 400 5.5 3710x1650x2450
WEK-100/3200 1000 3200 2660 400 200 450 7.5 3720x1690x2475
WEK-125/3200 1250 3200 2660 400 200 450 7.5 3740x1760x2535
WEK-125/4000 1250 4000 3200 400 200 450 7.5 4520x1760x2610
WEK-160/3200 1600 3200 2660 400 200 470 11 3760x1830x2620
WEK-160/4000 1600 4000 3200 400 200 470 11 4540x1830x2720
WEK-200/3200 2000 3200 2660 400 200 470 11 3760x1880x2670
WEK-200/4000 2000 4000 3200 400 200 470 11 4540x1880x2770
WEK-200/6000 2000 6000 4800 400 200 470 11 6080x1950x2900
WEK-250/3200 2500 3200 2660 400 250 490 15 3780x1980x2860
WEK-250/4000 2500 4000 3200 400 250 490 15 4560x1980x2960
WEK-250/5000 2500 5000 4000 400 250 490 15 5080x2100x3250
WEK-250/6000 2500 6000 4800 400 250 490 15 6080x2200x3400
WEK-300/4000 3000 4000 3200 400 250 500 22 4580x2080x3090
WEK-300/5000 3000 5000 4000 400 250 500 22 5100x2200x3300
WEK-300/6000 3000 6000 4800 400 250 500 22 6600x2250x3500
WEK-400/4000 4000 4000 3200 400 300 605 30 4580x2460x3600
WEK-400/5000 4000 5000 4000 400 300 605 30 5600x2460x3750
WEK-400/6000 4000 6000 4800 400 300 605 30 6200x2650x3800
WEK-500/4000 5000 4000 3200 600 300 615 37 4200x2800x4100
WEK-500/5000 5000 5000 4000 600 300 615 37 5200x2800x4200
WEK-500/6000 5000 6000 4800 600 300 615 37 6200x2800x4600
WEK-600/5000 6000 5000 4000 600 300 650 37 5200x3000x4700
WEK-600/6000 6000 6000 4800 600 300 650 37 6200x3000x5400
WEK-800/5000 8000 5000 4000 700 350 710 55 5200x3500x5600
WEK-800/6000 8000 6000 4800 700 350 710 55 6200x3500x5800
WEK-1000/6000 10000 6000 4800 700 350 730 55 6200x4100x6900
