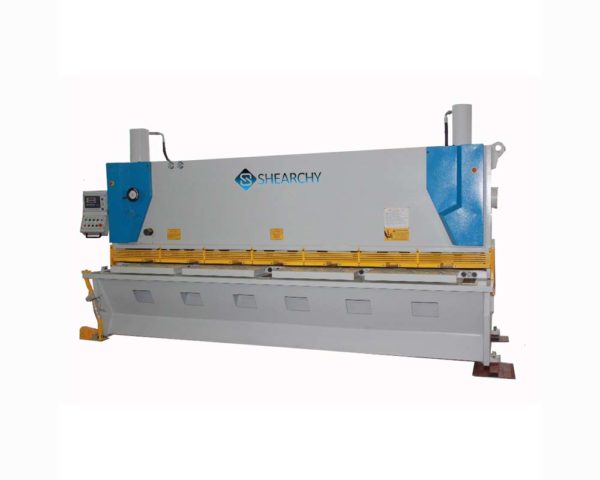

CNC Hydraulic Metal Plate Shear Machine

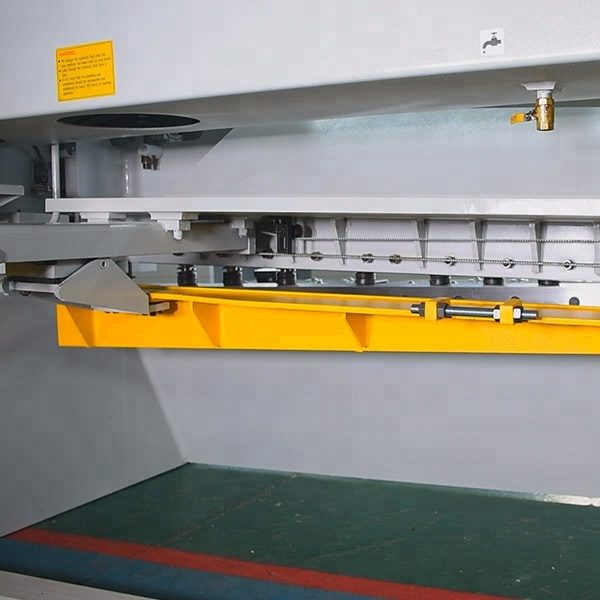

CNC Guillotine Plate Steel Metal Shearing Machine back look
guillotine shear table machine show room banner 3 roller bending rolls CE-ISO China NC bending machine press brake metal shears bending rolls rolling machine manufacturer factory supplier
machine show room banner 3 roller bending rolls CE-ISO China NC bending machine press brake metal shears bending rolls rolling machine manufacturer factory supplier
swing beam shear electrical carbnet ELGO P40 guillotine shear table machine show room banner 3 roller bending rolls CE-ISO China NC bending machine press brake metal shears bending rolls rolling machine manufacturer factory supplier
Industrial Metal Shear Electrical Components ELGO P40 control system

EUROCUT GUILLOTINE SHEARS

  • EUROCUT SHEAR is equipped with the best materials for optimal support and incredible performance ensuring a smooth production process.
  • EUROCUT SHEAR provides high strength, productivity, sensitivity, and safety while lowering your production cost and improving your bottom line.
  • Adjustable and precise shearing has just gotten easier.

Category: Tag:

Description

Quick Details

Condition: New                                  Brand Name:  Shearchy                                  Machine Type:  Guillotine shear
Raw Material:Steel plate                  Warranty: 13 months                                       Certification: ISO, SGS, CE
After-sales Service Provided:Engineers available to service machinery overseas

EUROCUT CNC Guillotine Shear Product Description

The second generation of hydraulic guillotine shear.
Welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good rigidity.
Advanced integrated hydraulic system with an excellent reliability.
The rolling guide with 3-point support and improves the shearing quality.
Rapidly, accurately and conveniently adjusting the blade clearance with the hand wheel.
The rectangular blades featuring long lifetime with 4 cutting edges.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

EUROCUT CNC Guillotine Shear Configuration:

  1. Standard electrics from Schneider,France.
  2. Standard valves and oil pump from Bosch Rexroth Germany.
  3. Standard main motror from Siemens Germany
  4. Hydraulic and electrical overload protection
  5. Light guards ensure the safety of operators during operation

EUROCUT CNC Guillotine Shear Controller:

Standard controller: E21S

Backgauge control.
Control for general AC motors,frequency inverted.
X-axis intelligent positioning.
Double programmable digital output.
Stock counter.
Program memory for up to 40 steps,up to 25 steps per program.
One side positioning.
Retract function.
One key backup/restore of parameters.
Units:Mm/inch.
Language:Chinese/English.

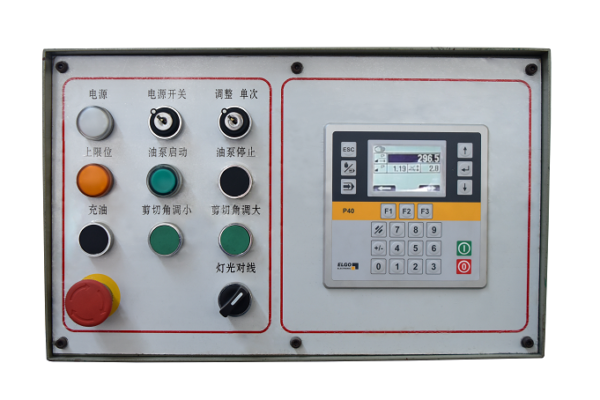

Optional: ELGO P40

Convenient operation, easily to input the target value: cutting angle, blade clearance, cutting strokes and parts counting. Each axis target value, current value and pieces can be displayed on screen. These encoders input running in analog mode.
Back gauge can be programmed.
Manual fine adjustment operation.
Single running.
Program memory can control 1000 program sentence.











EUROCUT CNC Guillotine Shear Technical Data

Model Cutting thickness(450Mpa) Cutting length(mm) Throat Depth (mm) Back gauge stroke(mm) Cutting angle Stroke frequency (Times/min) Main Motor (Kw) Gross weight(ton) Overall Dimensions LxWxH (mm)
4×2000 4 2000 80 600 0.5°-2° 14 5.5 3.8 2600x1680x1750
4×2500 4 2500 80 600 0.5°-2° 14 5.5 4.2 3125x1750x1765
6×2500 6 2500 80 750 0.5°-2.5 14 7.5 4.8 3150x1840x1960
6×3100 6 3100 80 750 0.5°-2.5 12 7.5 6.8 3850x1840x1995
6×4000 6 4000 80 750 0.5°-2.5 10 7.5 8.8 4650x1840x2100
6×5000 6 5000 80 750 0.5°-2.5 8 7.5 13.5 5650x2050x2400
6×6000 6 6000 80 750 0.5°-2.5 8 7.5 16.5 6650x1980x2380
8×2500 8 2500 80 750 0.5°-2.5 14 7.5 6 3135x1840x2075
8×3100 8 3100 80 750 0.5°-2.5 12 7.5 7 3850x1990x2050
8×4000 8 4000 80 750 0.5°-2.5 10 7.5 9.5 4650x1890x2075
8×5000 8 5000 80 750 0.5°-2.5 7 15 16 5650x2050x2400
8×6000 8 6000 100 750 0.5°-2.5 7 15 21 6805x2115x2715
10×2500 10 2500 100 750 0.5°-3° 10 15 8.1 3195x1915x2205
10×3100 10 3100 100 750 0.5°-3° 8 15 9.2 3895x1900x2235
10×4000 10 4000 100 750 0.5°-3° 6 15 13 4695x1970x2450
10×5000 10 5000 100 750 0.5°-3° 5 15 20 5700x2115x2715
10×6000 10 6000 100 750 0.5°-3° 5 15 25 6905x2115x2800
12×2500 12 2500 100 750 0.5°-3° 10 15 8.8 3195x2000x2210
12×3100 12 3100 100 750 0.5°-3° 8 15 10 3895x1950x2240
12×4000 12 4000 100 750 0.5°-3° 6 15 14 4710x1950x2485
12×5000 12 5000 100 750 0.5°-3° 5 30 22 5750x2115x2800
12×6000 12 6000 100 750 0.5°-3° 5 30 30 7150x2300x3100
16×2500 16 2500 100 750 0.5°-3° 8 15 9.5 3215x1970x2340
16×3100 16 3100 100 750 0.5°-3° 7 15 12 3915x1970x2455
16×4000 16 4000 100 750 0.5°-3° 6 15 16.5 4715x2010x2590
16×5000 16 5000 100 750 0.5°-3° 5 22 25 6000x2300x3000
16×6000 16 6000 100 750 0.5°-3° 5 37 28 7250x2400x3100
20×2500 20 2500 100 750 0.5°-3.5° 6 22 12.5 3235x2020x2465
20×3100 20 3100 120 750 0.5°-3.5° 5 30 18 4150x2065x2755
20×4000 20 4000 120 750 0.5°-3.5° 4 30 23 4955x2125x2885
20×5000 20 5000 120 750 0.5°-3.5° 4 37 29 6000x2300x3050
20×6000 20 6000 120 750 0.5°-3.5° 5 37 43 7150x2450x3280
25×2500 25 2500 120 750 0.5°-3.5° 5 37 16 3465x2130x2710
25×3100 25 3100 120 750 0.5°-3.5° 5 37 23 4120x2200x3000
25×4000 25 4000 120 750 0.5°-3.5° 4 37 28 4950x2200x3150
30×2500 30 2500 120 750 0.5°-4° 4 37 18 3465x2170x2770
30×3100 30 3100 120 750 1°-4° 3 37 25 4200x2300x3200
40×2500 40 2500 80 750 1.5°-4° 4 37×2 32 3770x2550x3400
40×3100 40 3100 80 750 1.5°-4° 3 37×2 38 4300x3100x3600
40×4000 40 4000 80 1000 1.5°-4° 3 45×2 46 5200x3200x3800
